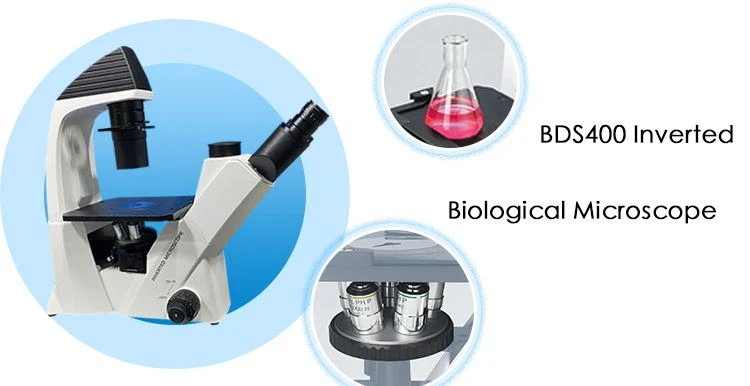

Inverted Biological Cells Microscope
Hom: Inverted biological microscopes
Qauv: BDS400
Saib lub taub hau: Trinocular taub hau
Lub qhov muag: WF10X / 22MM
Infinity LWD Plan Objective: 10X/20X/40X
Infinity LWD Phase Contrast Objective: 20X
Mechanical theem: 210 * 241mm
Condenser:NA0.3 ntev ua haujlwm
Lub teeb ci: 6V / 30W halogen teeb
- Kev xa khoom sai
- Quality Assurance
- 24/7 Kev Pabcuam Cov Neeg Siv Khoom
Khoom Taw qhia
Qhov no hom tshiab kev muaj zog siab trinocular inverted microscope muab cov duab zoo meej meej meej. Nws muaj plaub qhov kev nthuav dav 40X, 100X, 200X thiab 400X, tso cai rau koj saib cov qauv ncaj qha hauv kab lis kev cai flasks thiab / lossis petri tais diav. Lub inverted biological cells microscope tuaj nrog widefield plan optics, ib tug 45 degree inclined 360 degree swiveling trinocular taub hau uas enables mus ntxiv yees duab los yog video muaj peev xwm.
BDS400 inverted biological microscope yog ib qho cuab yeej zoo tshaj plaws rau Cov Tsev Kho Mob, Vets, Kws Kho Mob thiab Cov Tub Kawm Ntawv los saib cov kab lis kev cai ntawm cov nqaij mos nyob hauv cov tais diav thiab tshuaj xyuas cov khoom hauv cov kua hauv qab ntim.
Ntev ua haujlwm nrug condenser NA 0.30, Ua haujlwm nrug: 72mm
Ua hauj lwm nrug: 195mm (tsis muaj condenser), muaj rau cov kab lis kev cai siab ntxiv
Loj loj theem, yooj yim rau kev tshawb fawb. Loj: 240mm (X) × 210 (Y)mm
Mechanical theem muaj rau 96 qhov phaj. Kev txav chaw: 128mm (X) × 80 (Y)mm
Loj txoj kab uas hla quintuple nosepiece tuaj yeem ntsia tau ntau lub hom phiaj, yooj yim dua rau kev siv.
Lub teeb faib (ob leeg): 100 : 0 (100 feem pua rau qhov muag); 80 : 20 (80 feem pua rau lub taub hau trinocular thiab 20 feem pua rau qhov muag)
Qhov no inverted biological cells microscope siv tus kws tshaj lij seidentopf trinocular soj ntsuam lub taub hau.Tus neeg siv tuaj yeem kho cov raj binocular kom sab laug thiab sab xis teb sib npaug tag nrho thiab tom qab ntawd tuaj yeem nruj los ntawm kev siv tus ntiv tes xoo ntsia hlau.Qhov no tuaj yeem ua rau cov neeg siv pom lub kaum sab xis zoo dua.
Yam khoom | Specification | BDS 400 | |
Qhov muag muag | WF10 × / 22mm (23mm yog nyob ntawm yeem) | ●● | |
LWD Infinity Objectives | LPlanFL PHP 20×/0.45 | WD =5.8mm | ● |
LPlanFL 10×/0.25 | WD =10.3mm | ● | |
LPlanFL 20×/0.45 | WD =5.8mm | ● | |
LPlanFL 40×/0.65 | WD =5.1mm | ● | |
AnnularSpot | 10X/20×/ 40× | ● | |
Seidentopf Trinocular taub hau | Inclined45 degree, interpupilary nrug: 48-76mm Lightdistribution (ob leeg): 100: 0 (100 feem pua rau eyepiece) 80:20 (80 feem pua rau trinocular taub hau, thiab 20 feem pua rau eyepiece) | ● | |
Nosepiece | Quintuple | ● | |
MechanicalStage | Stagesize: X × Y: 210 × 241mm, Round swb loj: Φ118mm, Attached mechanicalstage (muaj rau 96 qhov phaj, txav ntau X × Y: 128 × 80mm.) | ● | |
Culture tais tuav | 54mm ib | ● | |
Condenser | Ntev ua haujlwm ntev, nrawm nrawm, NA0.3, Ua haujlwm nrug: 72mm (nrog condenser), 195mm (tsis muaj condenser). | ● | |
Koehler Illumination | 6V / 30W (input voltage: 100V-240V) | ● | |
Lim | Xiav | ● | |
Ntsuab | ● | ||
Amber | ○ | ||
Grey | ○ | ||
C-mount | 1 × C-Mount (zoo dua rau cov duab digital) | ○ | |
0.5 × C-Mount (ua kom pom tseeb kho tau, zoo dua rau lub koob yees duab digital) | ○ | ||
